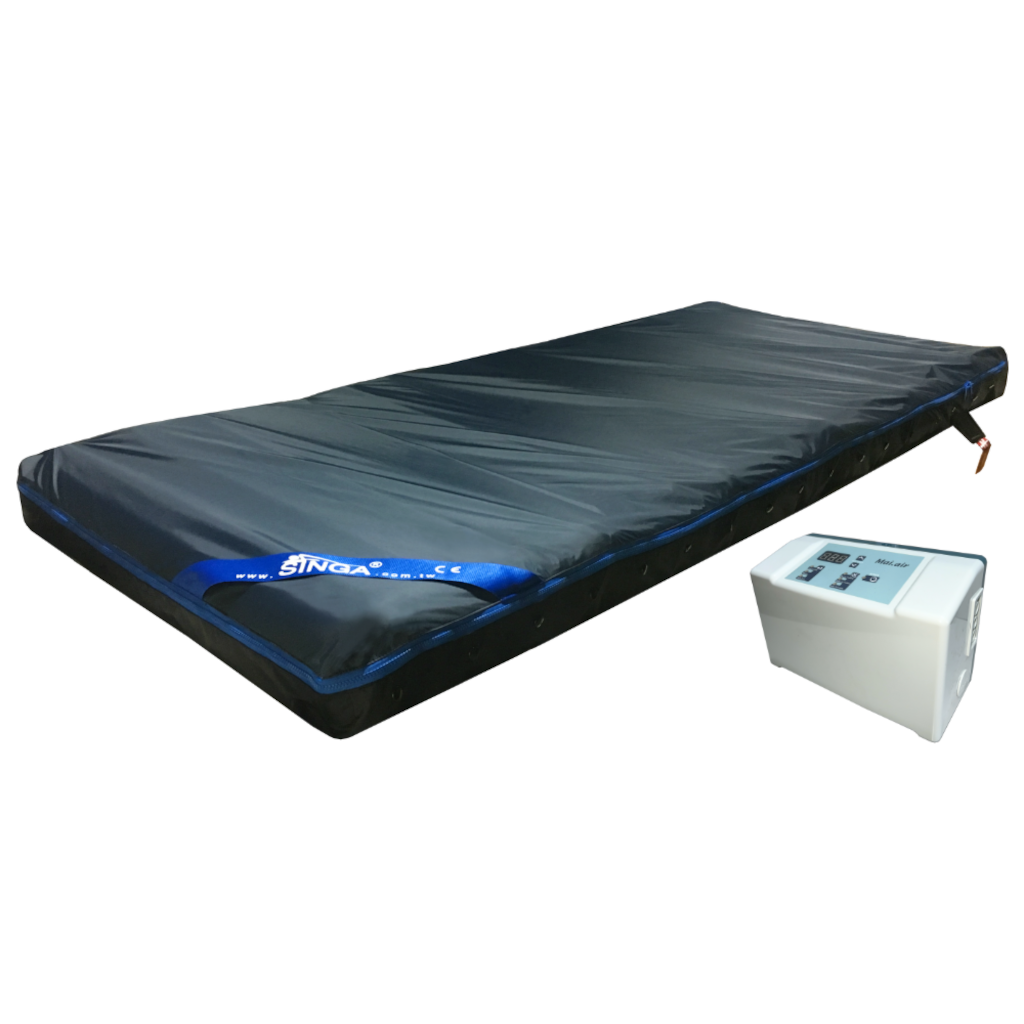

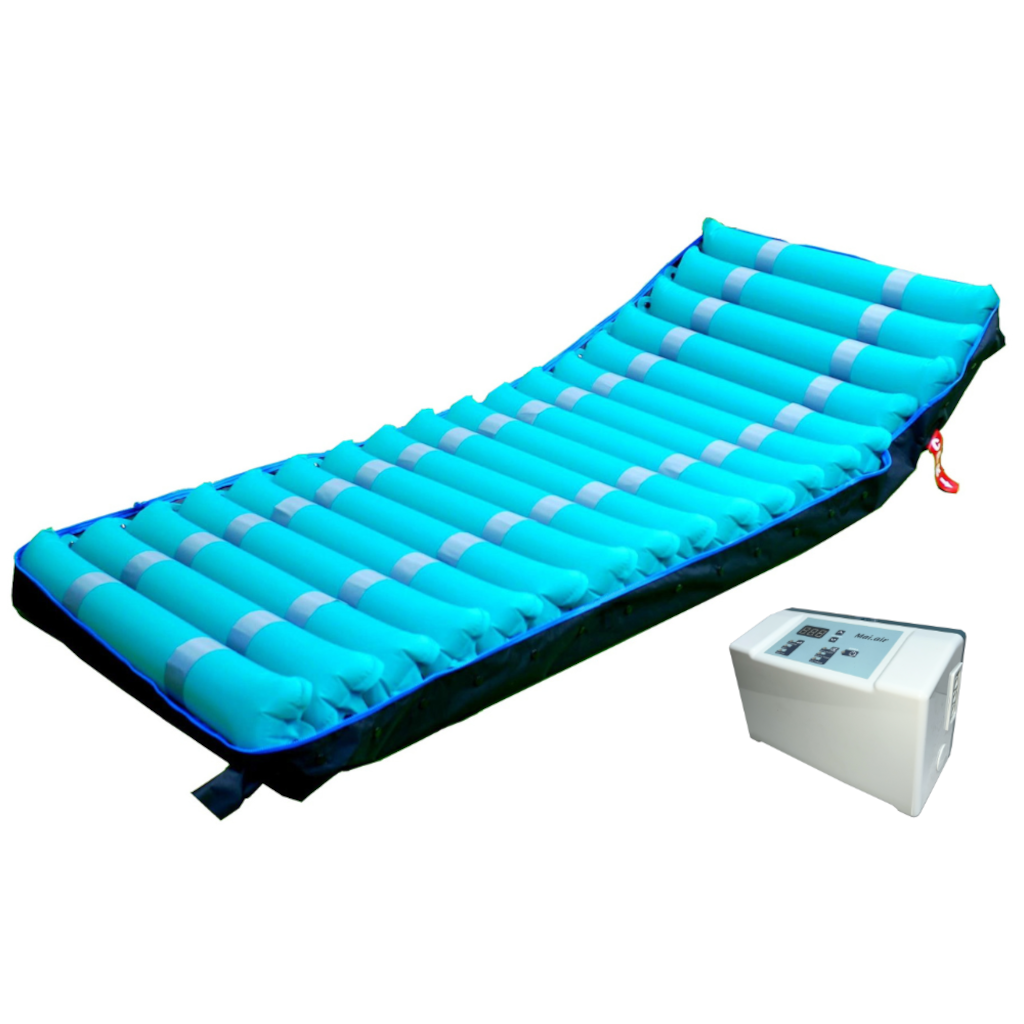

Mai Air M1 pressure relief air mattress(can be booked, and will be installed by us)

Mai Air M1 pressure relief air mattress (can be booked, and will be installed us)

Origin : Made in Taiwan

Alternating gas exchange time can be set : 5/10/20 minutes 2 -year warranty

Passed multiple international certification tests: US FDA , EU CE , ISO 9001 , ISO 13485 , quality assurance, a choice of confidence

Mattress size: 72.4" length x 33.5"width x 4"height(L184 x W85 x H10cm)

Pump size: 10.5"lengbth x 5"wide x 7"height(L26 x W12.5 x H17cm )

Warranty period : 2 years for mattresses / 1 year for air pumps ( except for human damage )

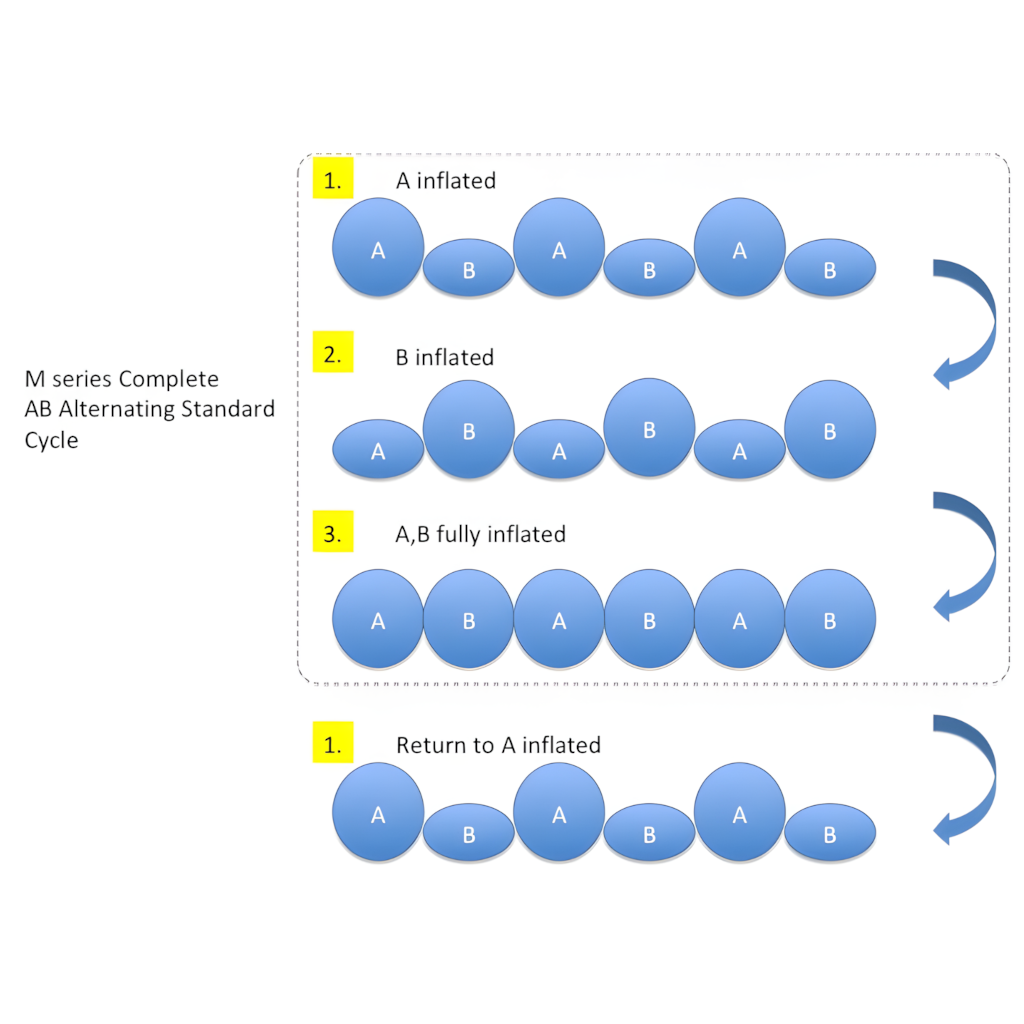

Inflation principle of air mattress

Inflate tube A > 5/10/20 minutes later ( settable ) > Inflate tube B > 5/10/20 minutes later > Inflate tubes AB together > 5/10/20 minutes later > Inflate tube A

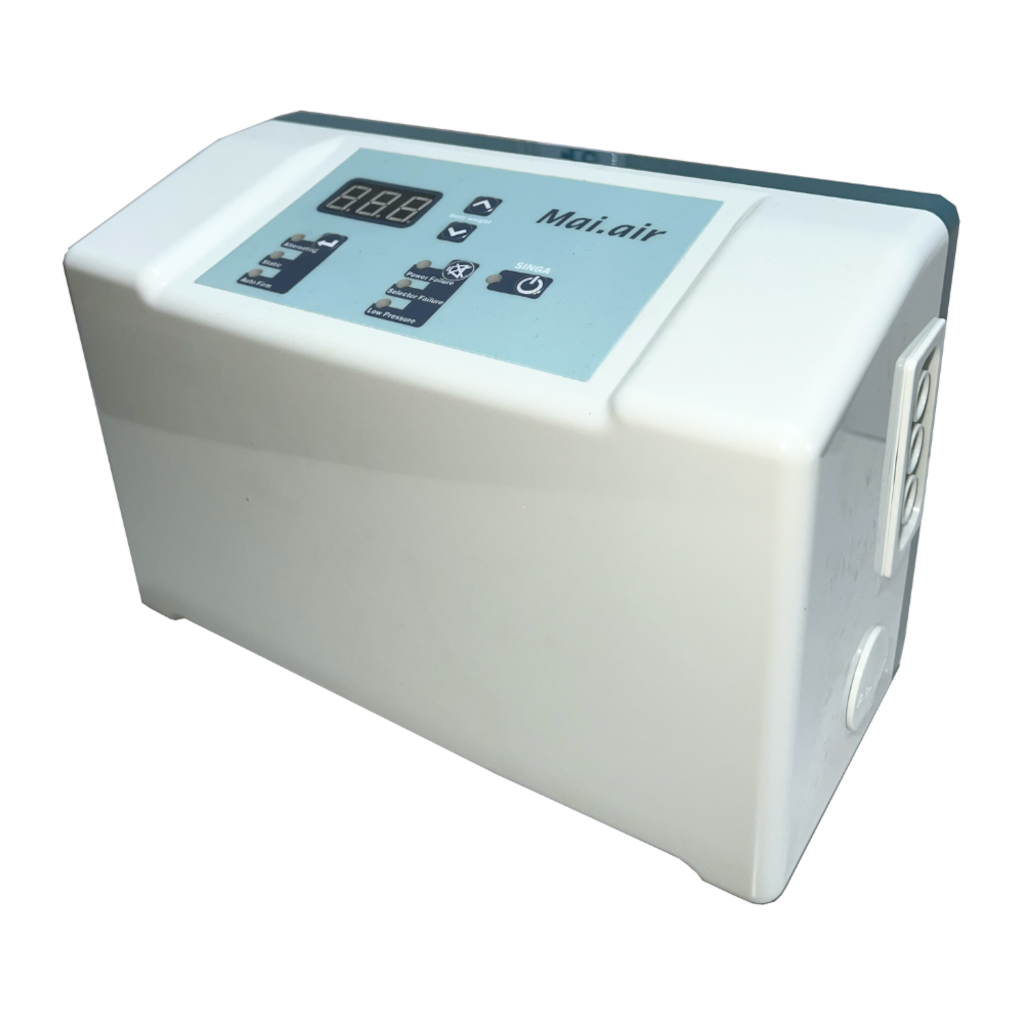

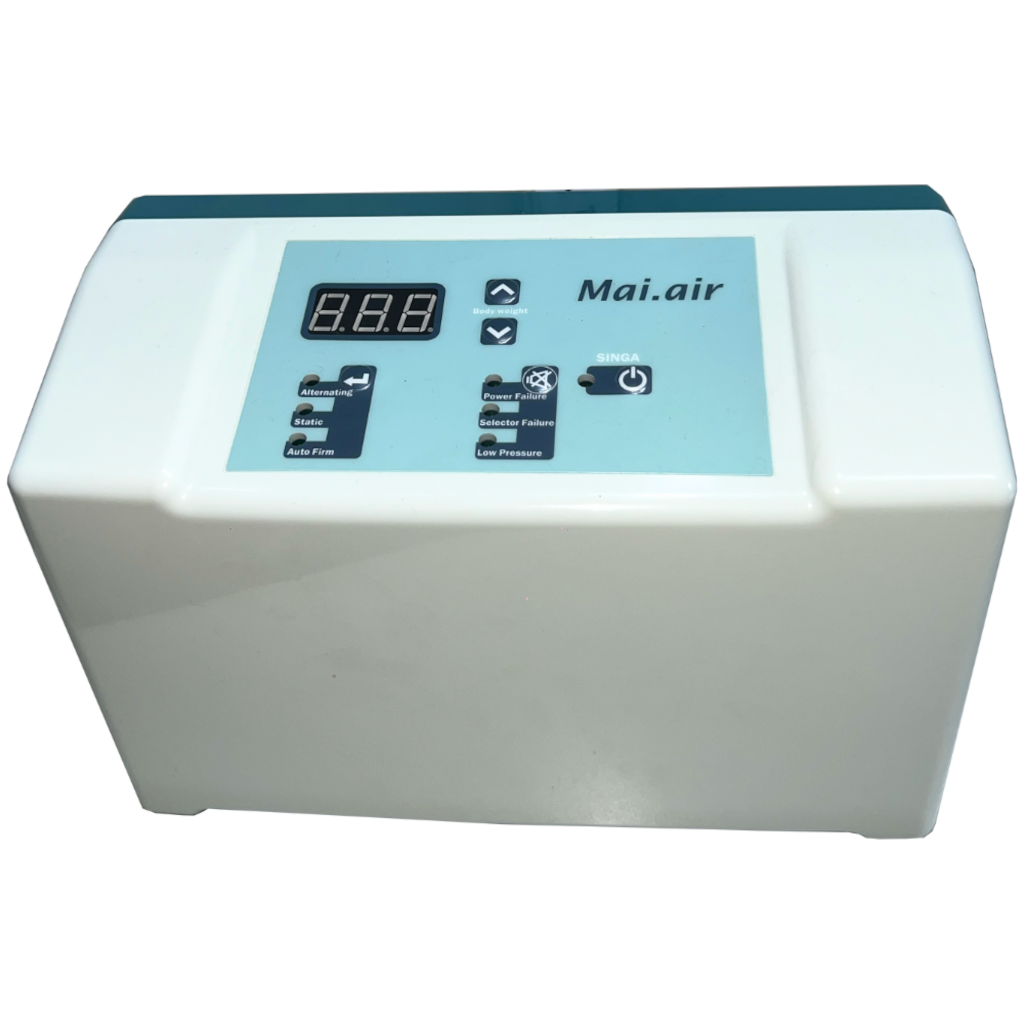

Air Pump

• High inflation flow rate: 8L / min , making inflation more stable
• There is a knob to adjust the inflation pressure of the tube ( mattress hardness adjustment )
• 3 modes: Alternating , Static , Auto Firm
• Alternating time can be set (5 / 10 / 20 minutes )
• Static mode : The pressure value is 2/3 of the set value , and it will automatically switch to alternating mode after 8 hours.
• In Static dining mode , the vibration of the bed's ventilation will not affect your meal.
• If the user feels that the alternating function affects sleep, they can also choose the dining mode (Static) to improve comfort.
• Auto Firm mode : The pressure value is the maximum value set, and it automatically jumps to alternating gas exchange after 1 hour.
• 3 error alarm lights and sounds: Low pressure , Power failure , Selector failure , so that caregivers can understand whether the air mattress pressure is normal
• Low pressure and selector failure will cause a short beep to warn you.
• Power failure will be warned by a long beep
• In addition to the sound, there will be a light to indicate which alarm item it is.
• Quick-connect plug ( connects mattress and air pump ) eliminates the need to plug / unplug pipes one by one, effectively preventing pipes from loosening or leaking
• The air pump is equipped with a pair of hooks for easy hanging on the bed frame / bed rails / headboard and footboard
• The air pump uses a PC board to control the pressure, which is more accurate in controlling the high and low pressures and has a lower failure rate. The general air pump uses a simple Micro-switch mechanical mechanism to control the high and low pressures, which makes the parts easily fatigued and more prone to failure.

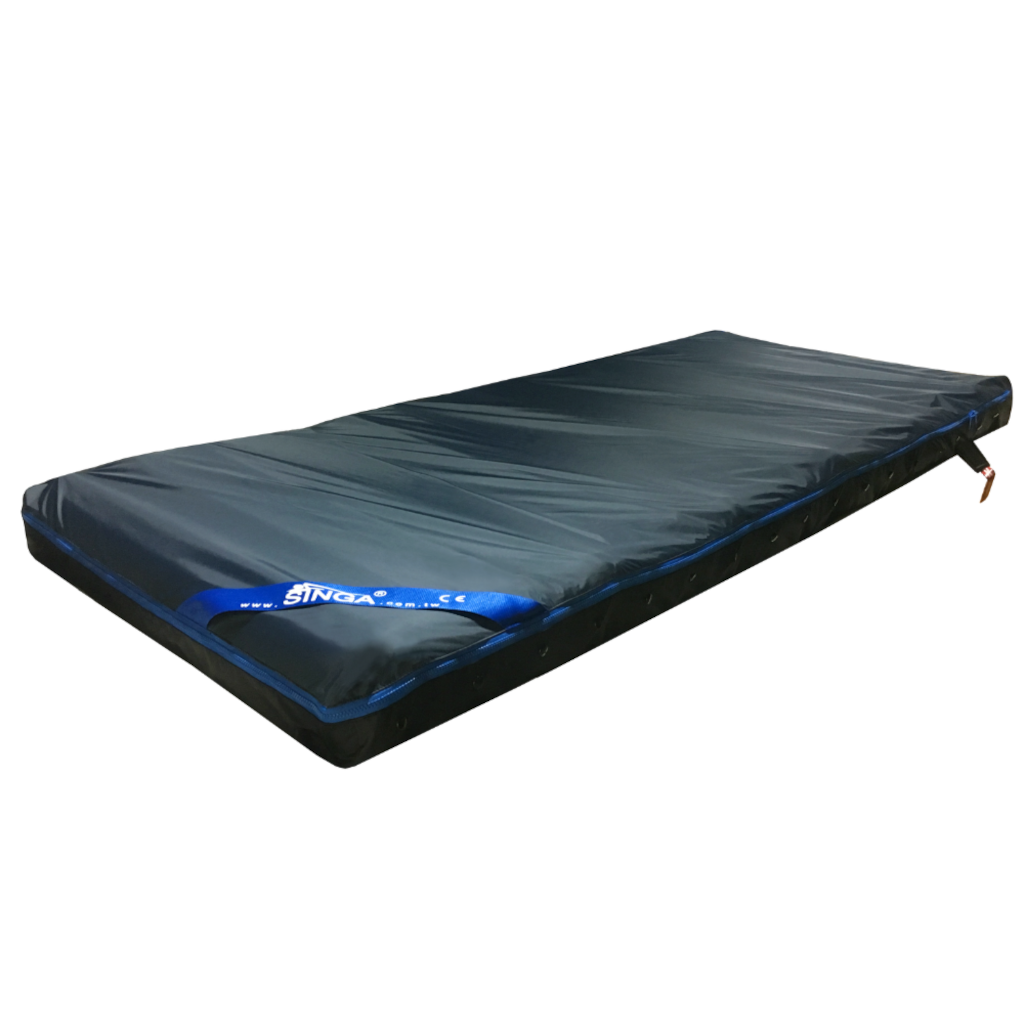

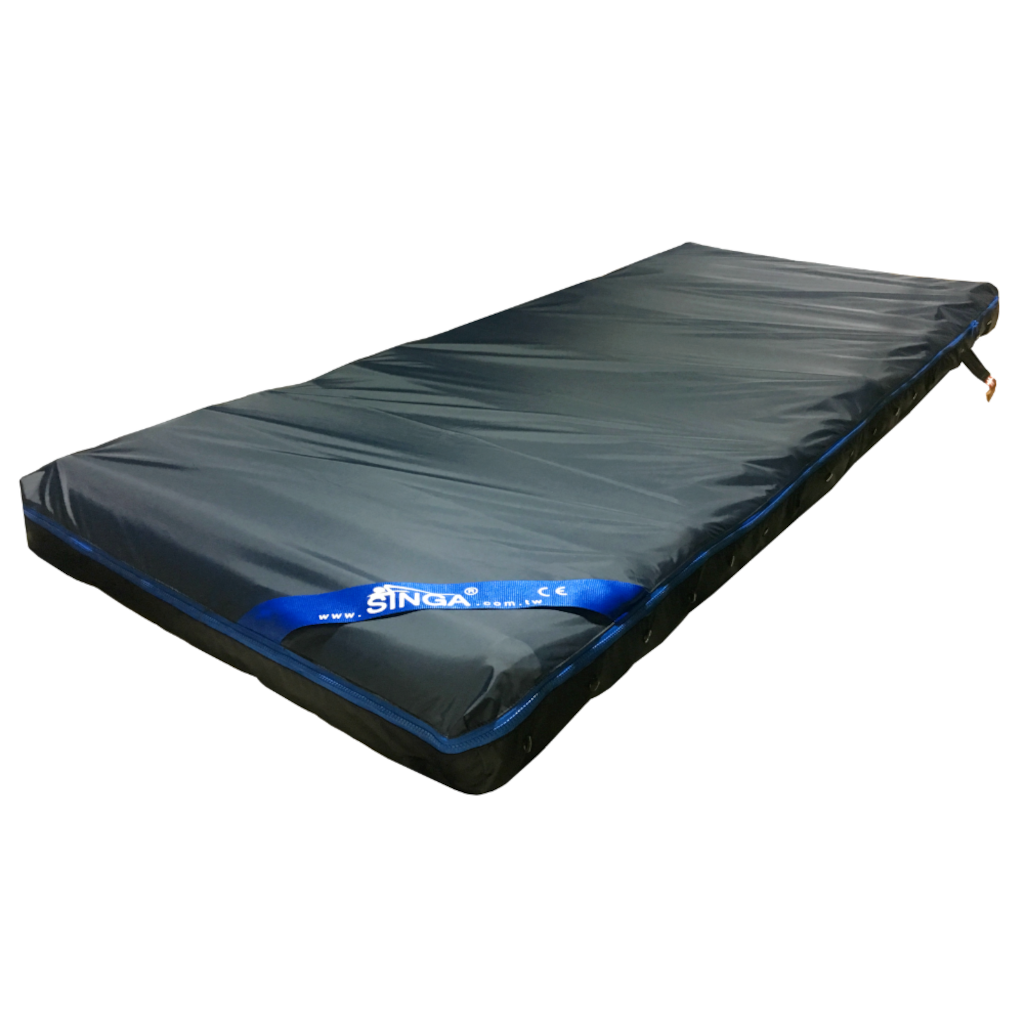

Mattress

• The two groups of tubes are inflated alternately. When the tubes of group A are inflated, the tubes of group B will slowly exhaust; vice versa
• The tube strips are inflated alternately, so the user's skin will not be under long-term pressure and develop bedsores
• The two sets of tubes are ventilated alternately every 5 / 10 / 20 minutes, effectively preventing bedsores
• Equipped with a pillow function ( the first to fourth tubes will not alternately exchange air ) , which helps reduce the impact on the user's sleep
• The mattress tubes ( tubes 5 to 8 ) are equipped with True Low Air Loss to keep the user's skin dry and greatly reduce the chance of bedsores at the user's skin's greatest stress points ( scapula to coccyx ) .
• Equipped with CPR quick exhaust function, which makes it easier for nursing staff to provide first aid such as external cardiac compression in emergency situations
• The mattress is equipped with a TPU waterproof cover to effectively prevent liquid from flowing into the mattress

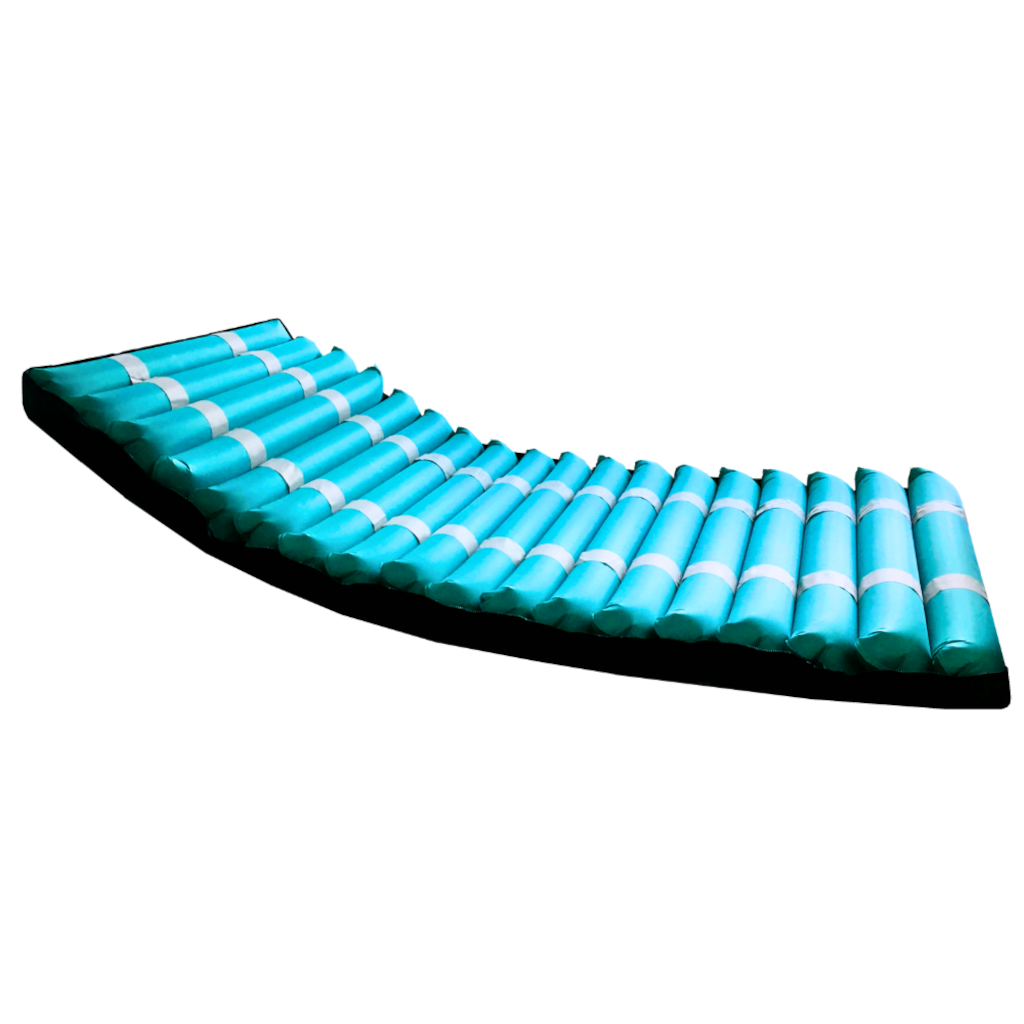

• The mattress is designed in a tubular shape, and each tube can be independently assembled and disassembled, making it easy to replace and clean.
• The mattress tubes and cover are made of Nylon + TPU materials. TPU is waterproof, soft and comfortable, elastic, highly durable and environmentally friendly. On the contrary, ordinary air mattresses are made of PVC , which is more resistant, inelastic, less durable and pollutes the environment.
• The mattress base is made of non-slip material to prevent the mattress from sliding
• Mattress has high load-bearing capacity, up to 150kg

Pass the test

• Mai Air pumps by:
  EN 60601-1-2 , IEC 61000-4-2 , IEC 61000-4-4 , IEC 61000-4-6 , IEC 60601-1 , IEC 60529 Edition 2.2 – IP42 , ISO 3744 / ISO 7779
• Mattress by:
  ROHS , IEC 62321 , BS EN 1021-1 , BS EN 1021-2
  [Optional: Fireproof mattress cover ( compliant with BS7175 Crib 5 fireproof ) ]

Specification

• Circulation ventilation mode: two-tube alternating ventilation (AB)
• Air pump model: Mai Air M1 air pump
• Air pump inflation flow rate: 8 liters / minute
• Inflation pressure ( hardness ) selection : 10
• 3 modes: Alternating , Static , Auto Firm
• Alternating gas exchange time ( can be set by yourself ) : 5 / 10 / 20 minutes
• 3 types of error alarm lights and sounds: Low pressure , Power failure , Selector failure
• Display: LED
• Quick-connect plug ( no need to plug / unplug pipes one by one )
• Pump size: L260 x W125 x H170mm
• Air pump weight: 3.4kg
• Air pump motor power: 13 W/HR
• Power cord length: 3m
• Mattress Model: NUV418BF
• Mattress size: L184 x W85 x H10cm (L72.4 x W33.5 x H4″)
• Cover material: Nylon 70D , 0.015 TPU film
• Tube height: 10cm
• Number of tubes: 18
• Tube material: Nylon 70D , 0.3 mm TPU film
• Bottom pad material: 210D Ny / 0.3 mm PVC film
• Air intake: Air intake at the end of the bed
• CPR rapid deflation
• Pillow function: 1st -4th tube
• True low air loss : No. 5-8
• Mattress weight: 4.7kg
• Load: 150kg
• Noise level: <30DB
