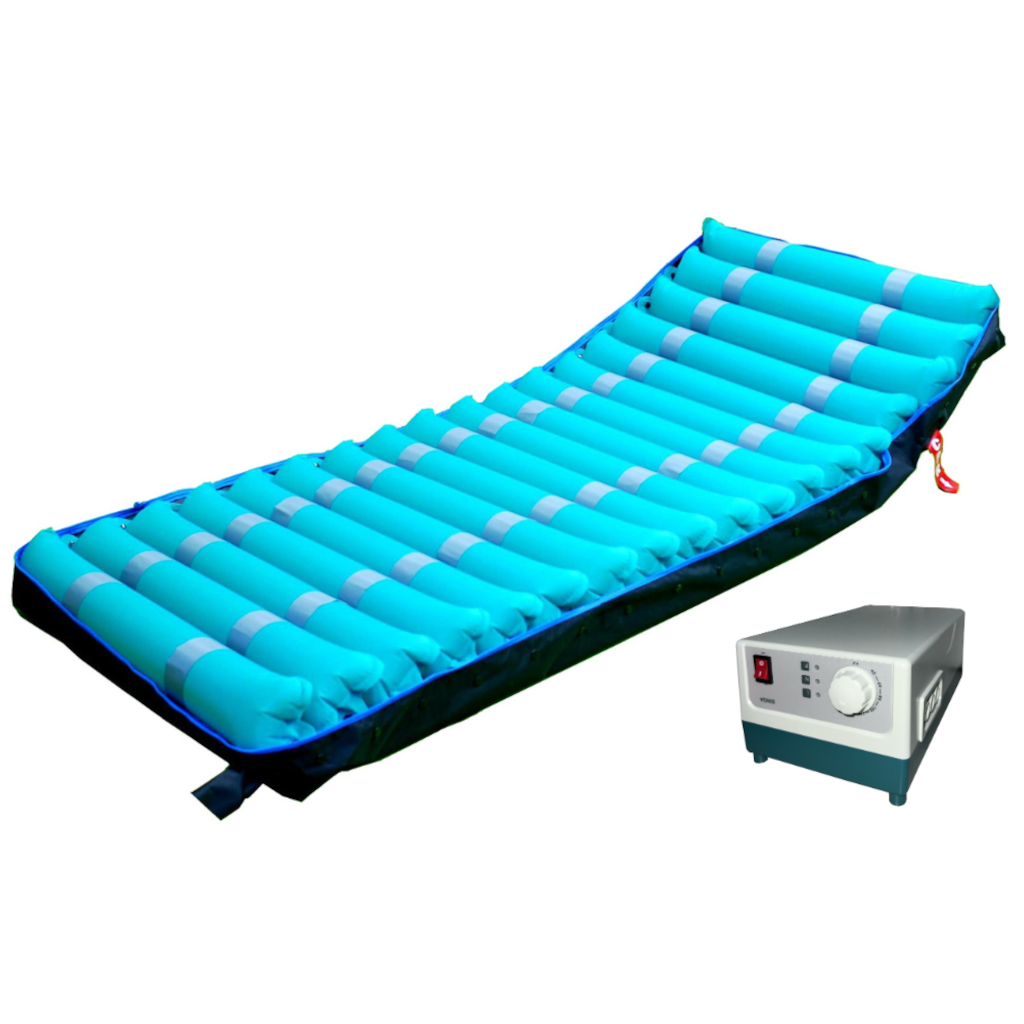

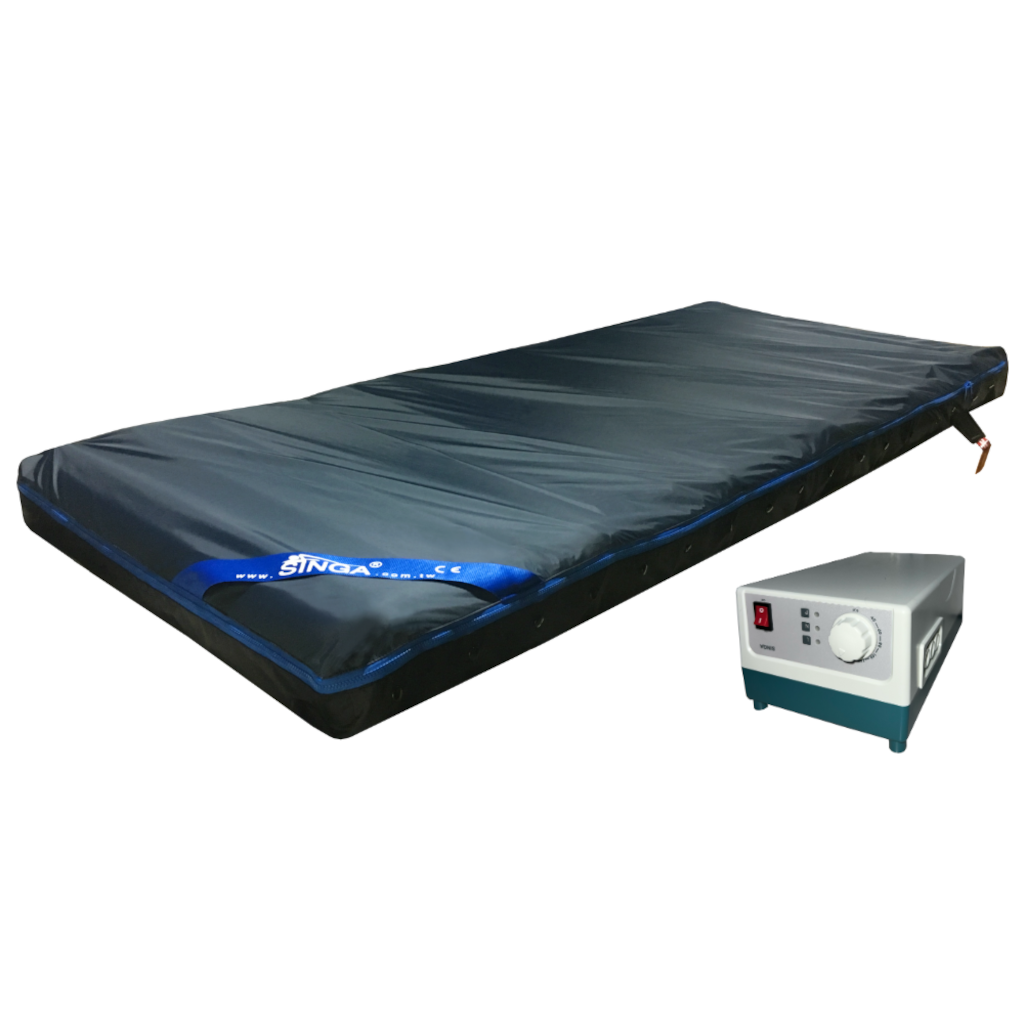

Brick decompression air mattress(can be booked, on site installation will be arranged)

Brick decompression air mattress(can be booked, on site installation will be arranged)

Origin : Made in Taiwan

Ventilation time: every 12 minutes

Optional : Two-tube (AB)/ Three-tube (ABC) alternating gas exchange

Optional : Air intake method ( air pump position : head / foot of bed )

Mattress size : 72.5" Length x 31.5"Width x 4"Height(L184 x W80 x H10cm)

Pump Dimensions : 4”L x 6.5″W x 7”H (L10 x W16 x H17.5 cm)

Material : PU+Nylon breathable waterproof mattress

Weight : 308.6 lbs

Warranty period: 2 years for mattresses / 1 year for air pumps( except for human damage )

Inflation principle of air mattress

Brick two-tube alternating air mattress:

Tube A inflated > 12 minutes later > Tube B inflated > 12 minutes later > Tubes AB inflated together > 12 minutes later > Tube A inflated

Brick three-tube alternating air mattress

BC tube inflation > 12 minutes later > AC tube inflation > 12 minutes later > AB tube inflation > 12 minutes later > BC tube inflation

Air intake method ( air pump position )

• Bedside air inlet: The air pump is placed near the bedside, making it convenient for caregivers to perform daily care work for the user.
• Air inlet at the end of the bed: The air pump is placed near the end of the bed to reduce the noise of the air pump

Optional when purchasing

• Two-tube (AB) / three-tube (ABC) alternating gas exchange
• Air intake method ( air pump position ) : head of bed / foot of bed

Features

• Made in Taiwan, the choice of confidence
• Passed multiple international certification tests: US FDA , EU CE , ISO 9001 , ISO 13485

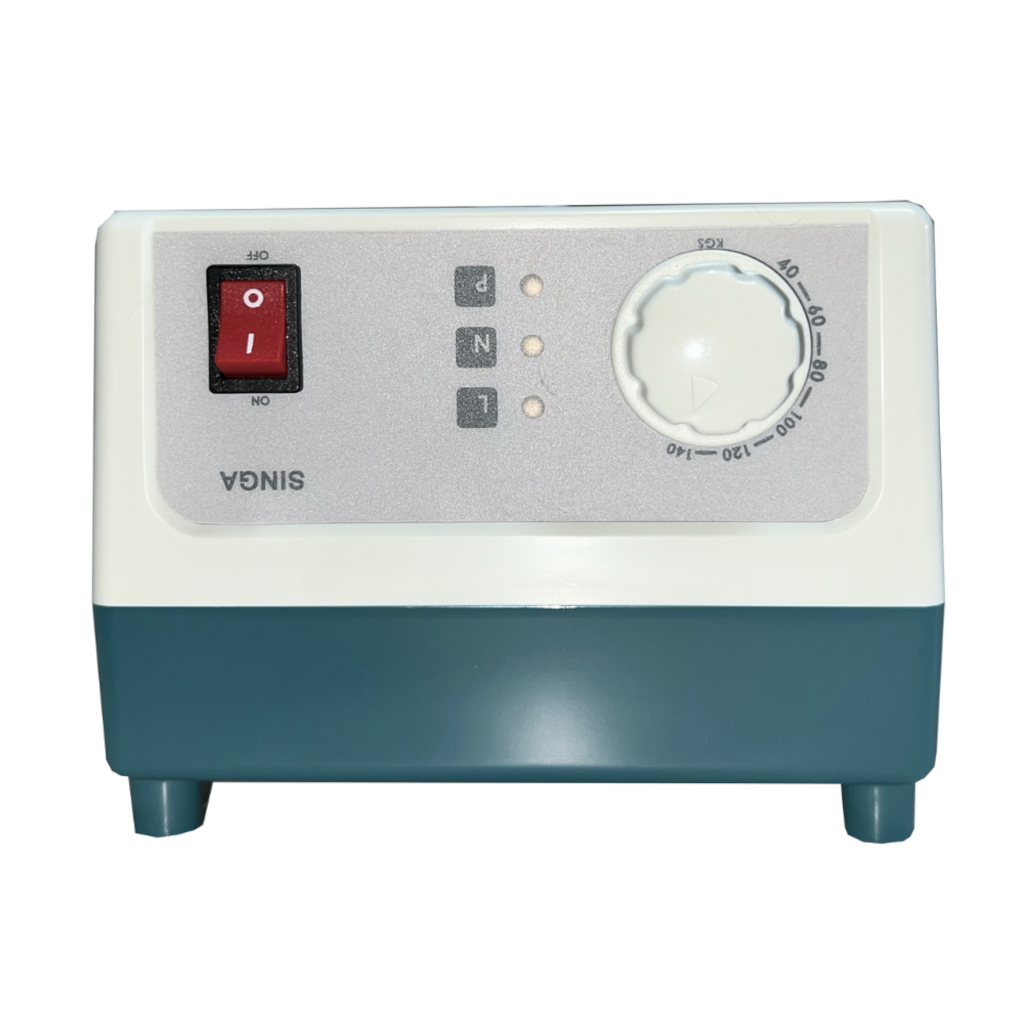

Air Pump

• There is a knob to adjust the inflation pressure of the tube ( mattress hardness adjustment )
• 2 error alarm lights: Low pressure , Power failure , so that caregivers can understand whether the air mattress pressure is normal
• Quick-connect plug ( connects mattress and air pump ) , no need to plug / unplug pipes one by one, effectively preventing pipes from loosening or leaking

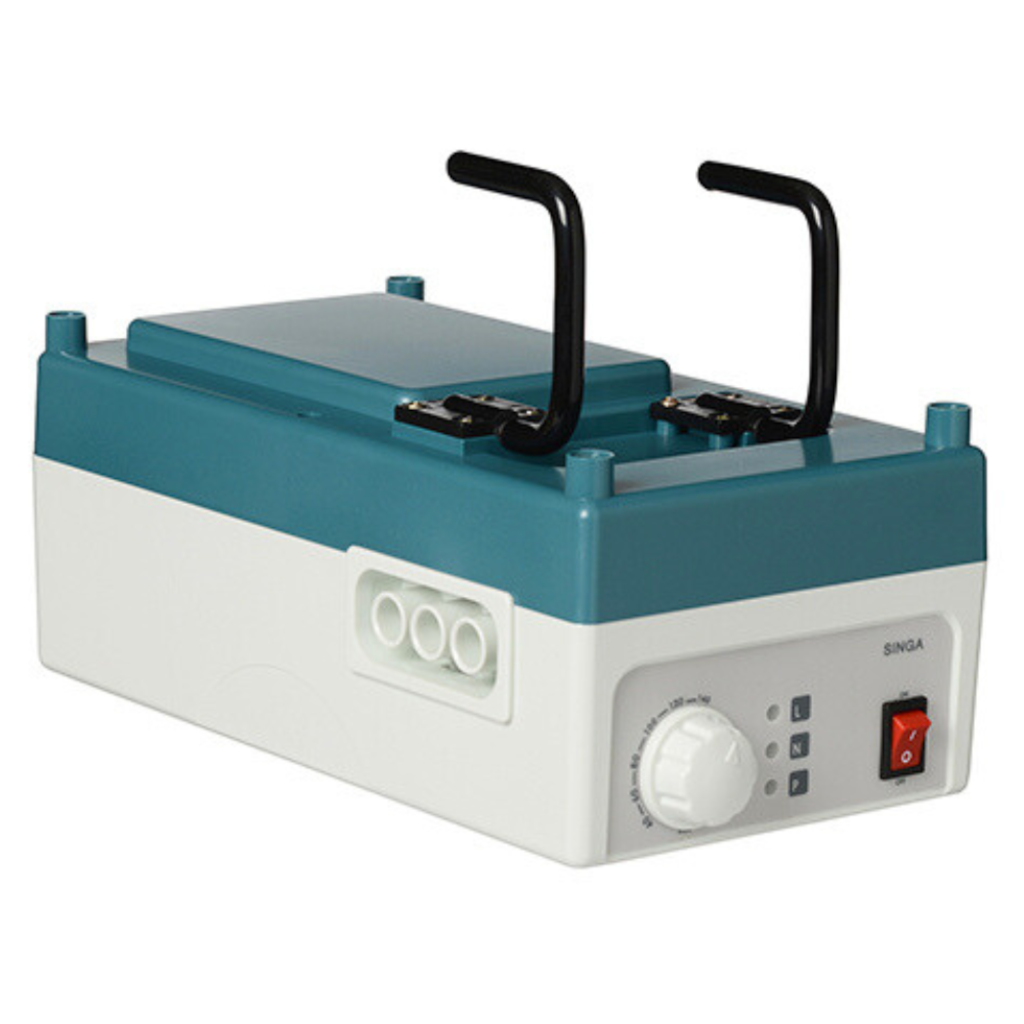

• The air pump is equipped with a pair of hooks for easy hanging on the bed frame / bed rails / headboard and footboard
• The air pump uses a PC board to control the pressure, which is more accurate in controlling the high and low pressures and has a lower failure rate. The general air pump uses a simple Micro-switch mechanical mechanism to control the high and low pressures, which makes the parts easily fatigued and more prone to failure.

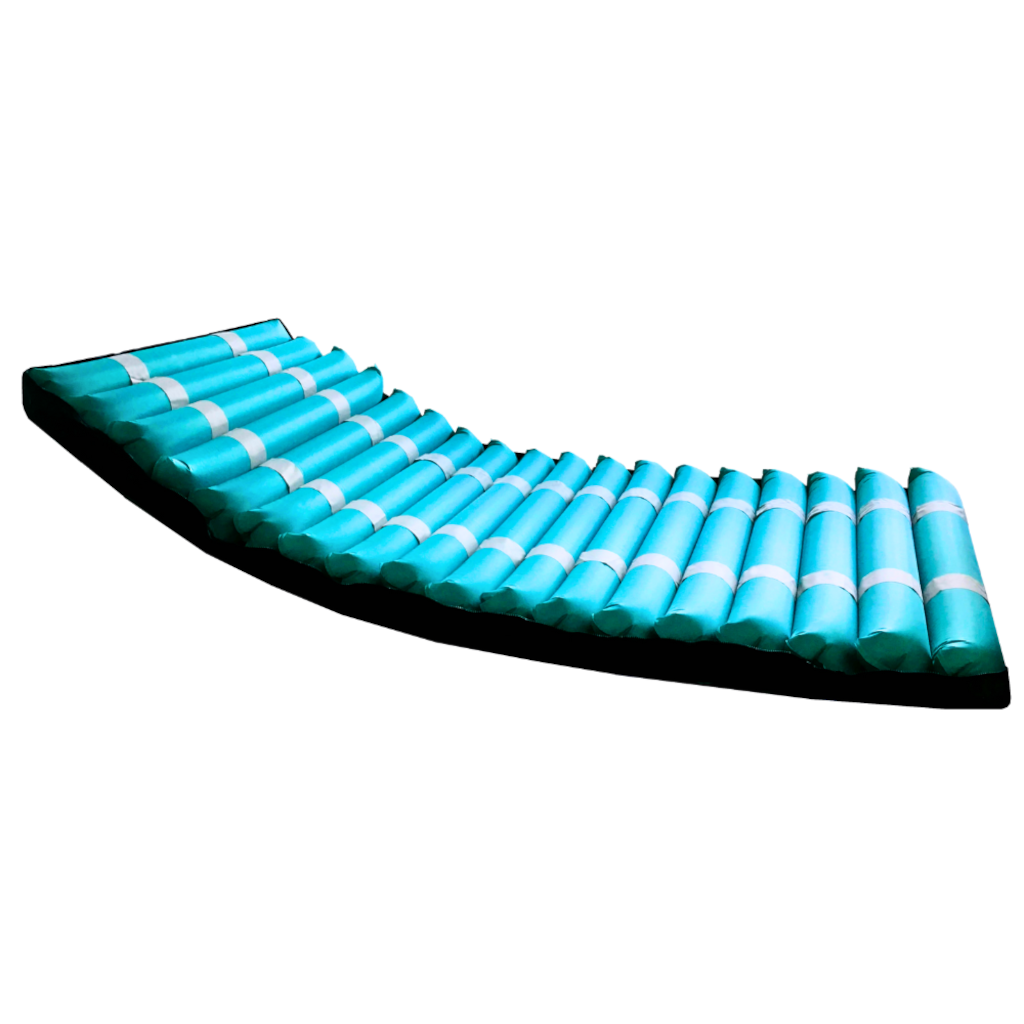

Mattress

• The two groups of tubes are inflated alternately. When the tubes of group A are inflated, the tubes of group B will slowly exhaust; vice versa
• The three groups of tubes are inflated alternately. When the tubes of group BC are inflated, the tubes of group A will slowly exhaust. When the tubes of group AC are inflated, the tubes of group B will slowly exhaust. When the tubes of group AB are inflated, the tubes of group C will slowly exhaust.
• Compared with the air mattress with three alternating tubes, more body area will be in contact with the air tube. However, under normal use, there is no significant difference in the pressure relief effect between the two alternating methods. In terms of comfort, the three-tube alternating air mattress is better.
• The tube strips are inflated alternately, so the user's skin will not be under long-term pressure and develop bedsores
• The two sets of tubes alternately change air every 12 minutes. The user will not feel uncomfortable due to too frequent alternating air ( e.g. every 4-8 minutes ) , and it can also effectively prevent bedsores.
• Equipped with a pillow function ( the first to fourth tubes will not alternately exchange air ) , which helps reduce the impact on the user's sleep
• The mattress tubes ( tubes 5 to 8 ) are equipped with True Low Air Loss to keep the user's skin dry and greatly reduce the chance of bedsores at the user's skin's greatest stress points ( scapula to coccyx ) .

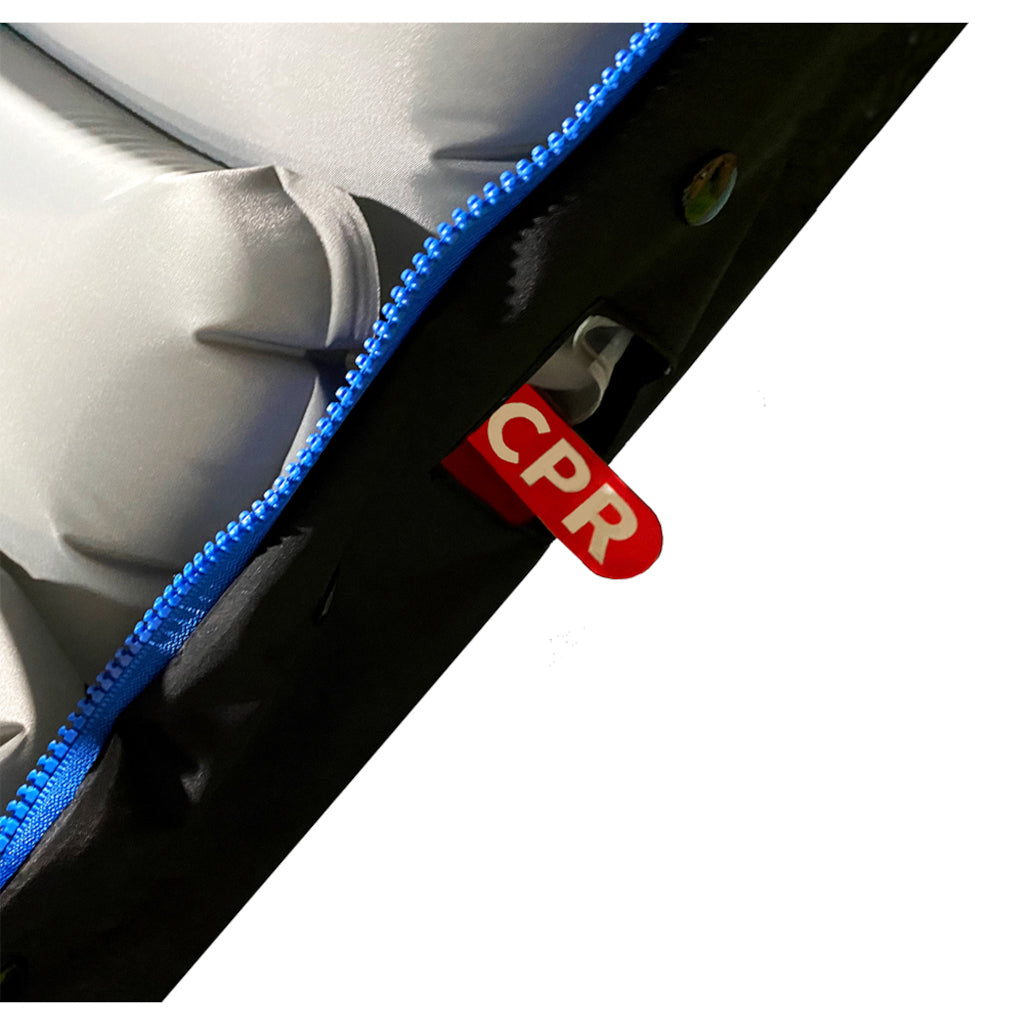

• Equipped with CPR quick exhaust function, which makes it easier for nursing staff to provide first aid such as external cardiac compression in emergency situations

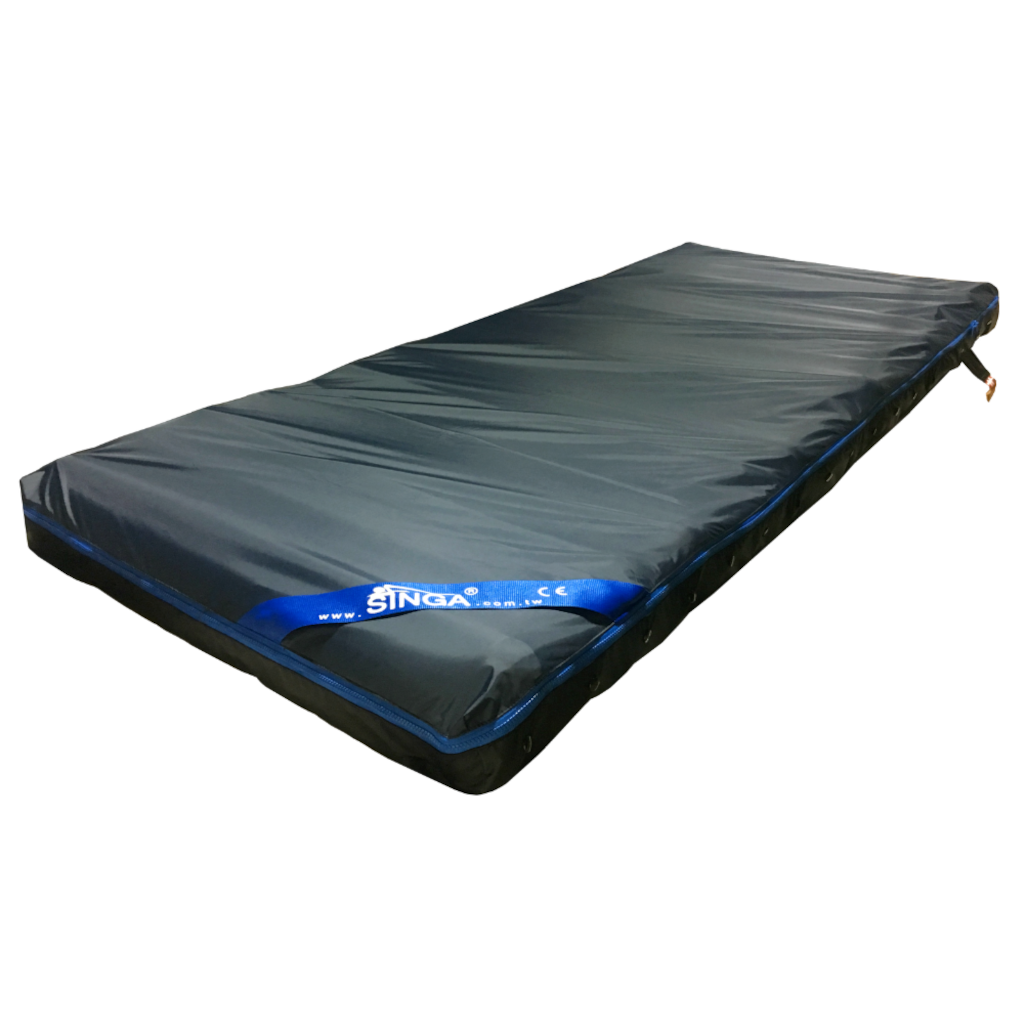

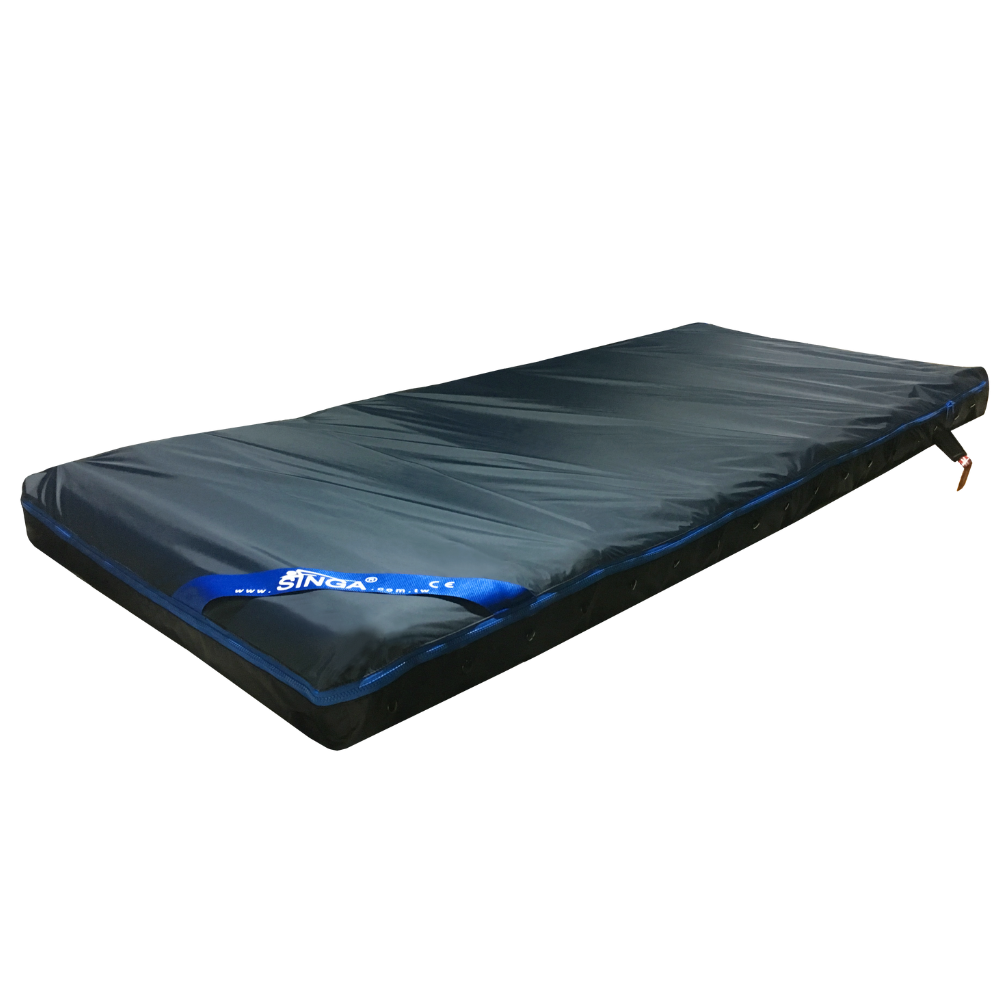

• The mattress is equipped with a TPU waterproof cover to effectively prevent liquid from flowing into the mattress
• The mattress is designed in a tubular shape. Each tube can be independently assembled and disassembled, making it easy to replace and clean.
• The mattress tubes and cover are made of Nylon + TPU materials. TPU is waterproof, soft and comfortable, elastic, highly durable and environmentally friendly. On the contrary, ordinary air mattresses are made of PVC , which is more resistant, inelastic, less durable and pollutes the environment.
• The mattress base is made of non-slip material to prevent the mattress from sliding
• Mattress has high load-bearing capacity, up to 140kg

Pass the test

• Brick air pump by:
  EU CE , EN 55011 , EN 61000-3-2 , EN 61000-3-3 , EN 60601-1-2 , IEC 61000-4-2 , IEC 61000-4-3 , IEC 61000-4-4 , IEC 61000-4-5 , IEC 61000-4-6 , IEC 61000-4-8 , IEC 61000-4-11 , IEC 60601-1 , IEC 60529 Edition 2.2 – IP4X , IEC 60529 Edition 2.2 – IP22 ,
• Mattress by:
  ROHS , IEC 62321 , BS EN 1021-1 , BS EN 1021-2
  [Optional: Fireproof mattress cover ( compliant with BS7175 Crib 5 fireproof ) ]

Specification

• Circulation ventilation mode: two-tube (AB) / three-tube (ABC) alternating ventilation
• Air intake method ( air pump position ) : head of bed / foot of bed
• Air pump inflation flow rate : 5L / min
• Inflation pressure ( hardness ) selection : 6
• Alternating gas exchange time: about 12 minutes
• 2 types of error warning lights: Low pressure , Power failure
• Quick-connect plug ( no need to plug / unplug each pipe )
• Pump size: L100 x W160 x H175mm
• Air pump weight: 1.9kg
• Air pump motor power: 8 W/HR
• Power cord length: 3m
• Mattress size: L184 x W80 x H10cm (L72.5 x W31.5 x H4″)
• Cover and tube material: TPU + Nylon
• Number of tubes: 17
• CPR rapid deflation
• Pillow function: 1st -4th tube
• True low air loss : No. 5-8
• Mattress weight: 4.7kg
• Load: 140kg
• Noise level: <30DB
• Warranty: 1 year ( only the air pump is guaranteed, not man-made damage )
