Advanced 7530 Multi-functional Wheelchair (16" Back Wheel)

Advanced 7530 multi-functional light wheelchair (Small Wheel)

- Production and manufacturing comply with US FDA, ISO 13485 and ISO 9001, quality assurance

- Using a reinforced cross frame to increase the load-bearing capacity to 360lb

- The push handle is equipped with a 2- stage brake handle. Press up to slow down and press down to lock the wheelchair.

- The seat back cushions are connected with Velcro straps to make the overall stress on the wheelchair cloth cushion more even and more durable.

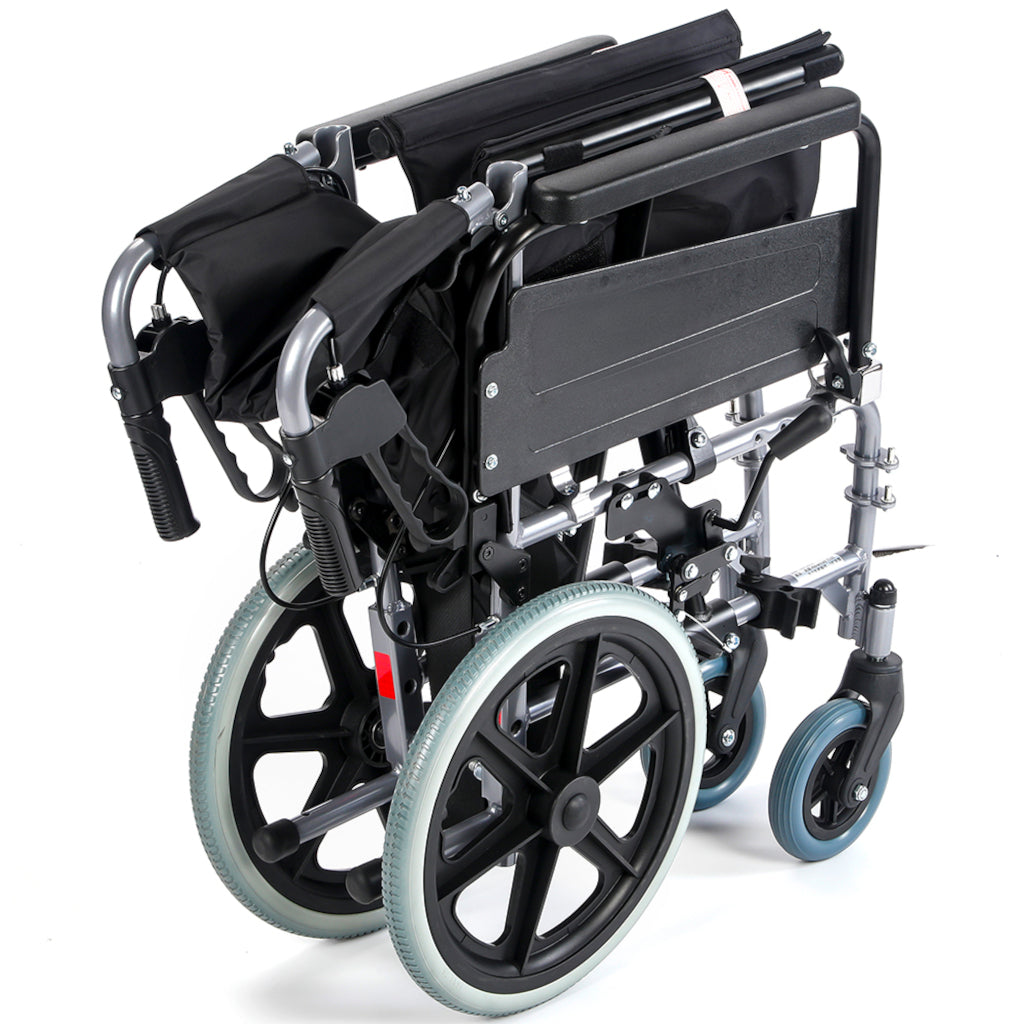

- Folding back function saves storage space and can be easily put into private cars and taxis

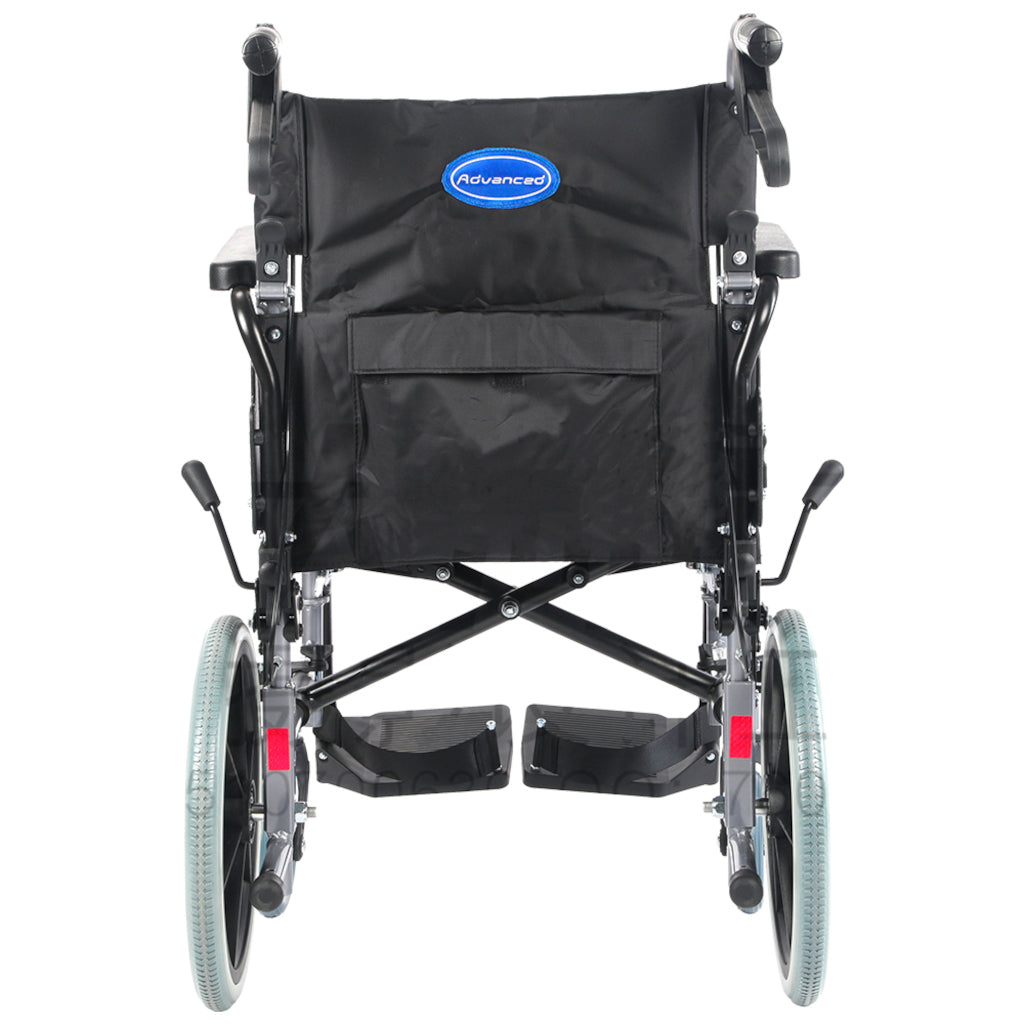

- There is a storage bag on the back of the chair to store your belongings

- Safety belts provided

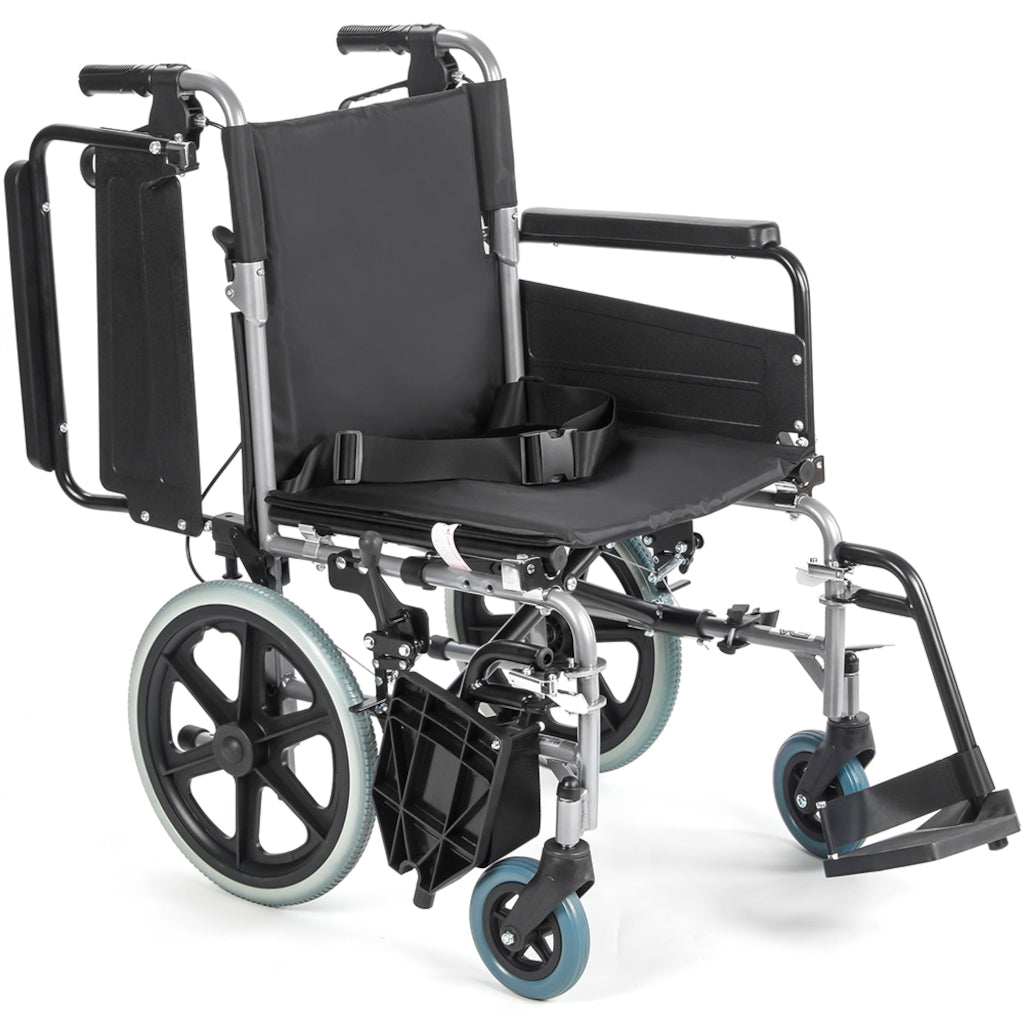

- The armrests can be lifted up and removed to easily pass the bed or stool from both sides

- The footrest can be opened and removed to facilitate getting on and off the wheelchair

- The height of the foot pedal is adjustable, suitable for people of different heights

- Footrests are equipped with heel straps for comfortable support

- Equipped with a pedal buckle, so that when the pedal is moved to both sides, it will automatically buckle firmly and will not swing left or right.

- Solid front and rear tires, no need to inflate, no puncture

- Equipment: 16″ / 18″ / 20” seat width, anti-roll wheels and orthopedic lifting pedals for customers to choose from

- Can be purchased separately: AD-0085 anti-roll wheels ( pair ) – suitable for Advanced 7530, 7510, 7511 wheelchairs

- Available separately: Orthopedic lift pedal ( adjustable to different angles ) , the user can rest his or her feet flat
> AD-0328 Orthopedic lifting pedal ( left ) – suitable for Advanced 7530 , 7510 , 7511 , 7010 wheelchairs
> AD-0329 Orthopedic lifting pedal ( right ) – suitable for Advanced 7530 , 7510 , 7511 , 7010 wheelchairs

Specification

- Seat width: 16″ / 18″ / 20″

- Seat depth: 16.3″

- Seat height: 19″

- Back height: 16.3″

- Arrest height: 9.8″

- Distance from seat cushion to center point of foot pedal (adjustable): 37 / 39 / 41 / 43 / 45cm

- Rear wheel outer width: 20.4″ / 22.4″ / 24.4″

- Total Width: 23″ / 25″ / 27”

- Overall length: 34.5 ″

- Overall height: 35.8″

- Folded dimensions: Width 11 x Length 25.5 ″ x Height 28″

- Front wheel: 6 diameter x 1 3/8″ thick

- Rear Wheel: Diameter x Thickness 1 3/8″

- Weight: 11.9kg

- Load capacity: 360lb/163.2kg

- Warranty: 10 years for the bracket (only guaranteed for non-welding, except for human damage)
